actiCHamp Plus

Manufacturer: Brain products GmbH
Brand:Brainproducts
Model:actiCHamp Plus

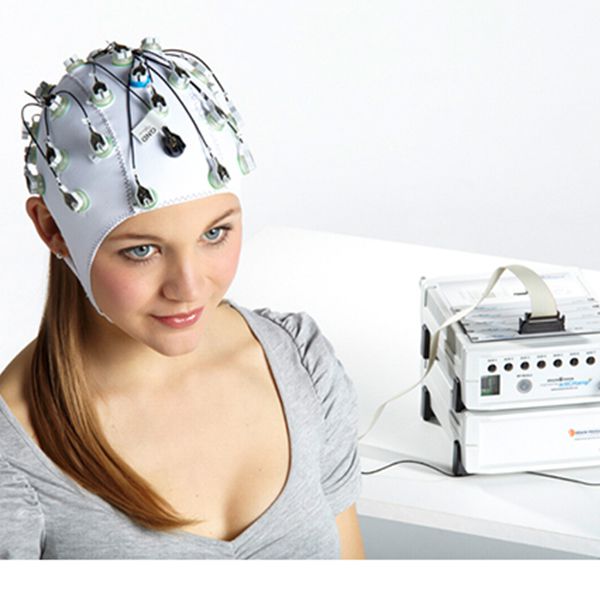

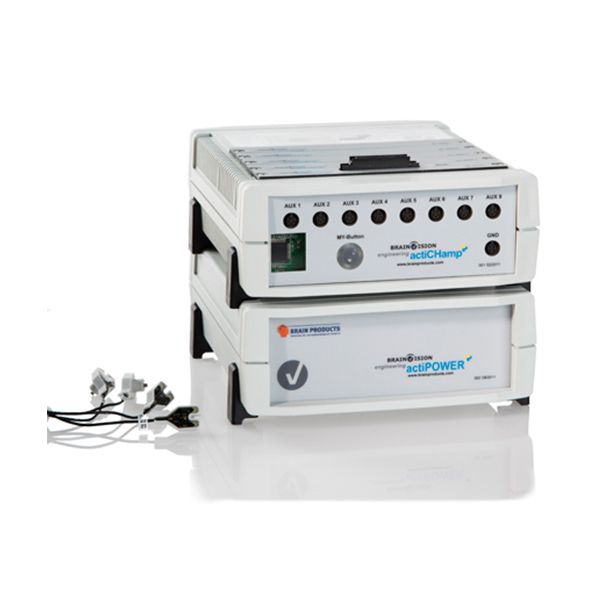

Brain Products' actiCHamp Plus is designed to be compatible with all active and passive electrode systems, significantly improving upon current single-mode EEG acquisition methods and establishing itself as the future mainstream amplifier system.

The channel modules of actiCHamp Plus enable impedance measurement for both passive and active electrodes, allowing users to verify and demonstrate that recordings are obtained at optimal electrode performance levels.

While using actiCHamp Plus with active electrodes (specifically actiCAP slim/snap*) remains the preferred solution, this is primarily due to Brain Products' active electrode systems offering exceptional artifact rejection capabilities while delivering superior data quality.

Integration with Active Ag/AgCl Electrodes

The system combines with active electrode systems featuring high-quality Ag/AgCl sensors and innovative integrated noise attenuation circuitry, delivering lower noise levels than conventional active electrodes. This configuration enables real-time impedance monitoring with visual feedback.

R-Net Saline Electrode Compatibility

actiCHamp Plus is compatible with Brain Products' newly developed R-Net saline electrodes. This system utilizes saline-soaked sponges with passive Ag/AgCl electrodes mounted in a durable, flexible silicone structure.

Standard Passive Electrode Cap Integration

The amplifier supports integration with Brain Products' standard passive electrode caps. These fully customizable systems feature built-in electrodes with an ultra-flat, comfortable design, offering stable signal quality and easy maintenance.

Screw-Type Dry Electrode System Support

The screw-type dry electrode technology eliminates the need for conductive gel, featuring:

Ultra-high front-end impedance amplification

Exceptional signal stability

Specialized electrode designs for different scalp locations and hair densities

Guaranteed high signal quality and reliability

Advanced Features of actiCHamp Plus

① Scalable Research Solution

Start with a 32-channel base module

Expandable to 64-160 channels by adding 2-4 additional modules

Cost-effective upgrade path

② Enhanced Auxiliary Inputs

8 additional built-in auxiliary channels

Supports sampling rates up to 100 kHz

Comprehensive trigger input/output connectivity

③ Multi-Modal Synchronization

Advanced synchronization options for TMS, EMG, and other modalities

Perfect temporal alignment with EEG signals

Configurable hardware sampling rate output

Programmable trigger pulse generation for lab equipment synchronization

④ Power Management

Lithium-ion battery powered (standard battery included)

Optimized for extended recording sessions

⑤ Trigger Distribution SystemAdvanced trigger mirroring capability

Simultaneous trigger distribution to multiple devices

Cross-platform compatibility (including NIRS systems)

Supports multi-modal experimental paradigms
